Short Wave Infrared Heaters & Modules

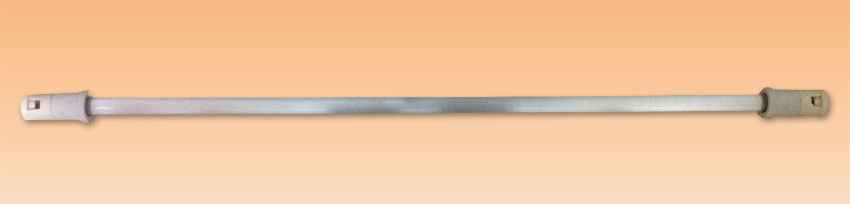

Short wave infrared lamp
Infrared heat is transmitted directly in the form of electromagnetic rays, at a velocity of approx. 300,000 km/sec i.e. at the speed of light.

IR is therefore not only the "fastest form of heat", but is also suitable for particularly demanding applications such as vacuum technology and clean room conditions.

Infrared heat is particularly economical on energy compared to other Joule Techs because it acts quickly, directly on product.

Short Wave IR emitters are suitable for all applications in which the attainment of high temperatures in the shortest possible time is what counts.

Applications

• PET preform heating in stretch blow moulding machines.
• Paint baking.
• Rubber coating drying.
• Soldering fusing in PCB industries.
• Sterilizing / mirror coating drying in glass industries.
• Printing link drying in offset machines.
• Powder coating curing.
• Impregnation plants.
• Paper coating drying.
• All type of laminations.
• Preheating prior to embossing.
• Screen printing curing to T-shirts & textiles.

Standard range of Short Wave IR Lamps

	Code	Heated Length HL (mm)	Overall Length OL (mm)	Wattage (w)	Voltage (v)
	SW 500	127	212	500	240
	SW 1000	254	348	1000	240
	SW 1600 S	406	500	1600	240
	SW 1600 D	406	500	1600	415
	SW 2000 S	508	626	2000	240
	SW 2000 D	508	626	2000	415
	SW 2500 D	635	728	2500	415
	SW 3000 S	508	626	3000	240
	SW 3000 D	765	875	3500	415

All the above lamps are with round cap and 100 mm long lead wire at both ends.
For horizontal mounting application only.


SHORT WAVE INFRARED MODULE
Infrared modules are the ideal solution in the application of infrared heat technology. They save the user design costs and time, but are substantially less expensive than complete infrared systems.





Standard range of Short Wave IR Modules

Overall Dimensions (mm )					Lamp Specification
	Module Code	Length	Width	Depth	Lamp Used	Heated Length	Watts	Volt
	IRN 500	310	80	55	SW 500	127	500	240
	IRN 1000	460	80	55	SW 1000	254	1000	240
	IRN 1600 S	610	80	55	SW 1600 S	406	1600	240
	IRN 1600 D	610	80	55	SW 1600 D	406	1600	415
	IRN 2000 S	725	80	55	SW 2000 S	508	2000	240
	IRN 2000 D	725	80	55	SW 2000 D	508	2000	415
	IRN 2000 D	825	80	55	SW 2500 D	635	2500	415
	IRN 3000 S	725	80	55	SW 3000 S	508	3000	240
	IRN 3000 D	975	80	55	SW 3000 D	765	3000	415

Wider Module IRW type is available in above specifications with same
lengths x 145 mm (width) x 80mm (depth)
