Micro Tubular Coil Heaters

Features »
Microtubular coiled heaters are manufactured to a revolutionary design, which makes them the best choice in the most demanding conditions. The resistive wire is uniformly distributed in a compacted MgO insulation, with a CrNi-steel outer protection sheath. The heaters are annealed after manufacturing, thus acquiring a high malleability that allows their being subsequently bent into any complex shape, with extremely narrow bending radius. heaters are used in various applications, due to their being intrinsically reliable and highly versatile. They were first designed for a very specific application, the differential heating of plastic injection nozzles, and later become invaluable in the most diverse and demanding applications. Aerospace, railway, chemical, metalworking and food industry, glass and paper industry, automotive, packing, medical industry... all have taken advantage from the use of heaters, with their wide range of possible shapes and their fitness to an unlimited number of applications.


Winning Features »

• A very wide contact surface results in exceptio-nally high levels of thermal conductivity towards the body that needs to be heated
• Optimal insulation results in very long life duration
• Heavy-duty construction results in very high resistance to mechanical shocks
• Operation temperature up to 700°C (1300°F)
• Very low mass results in extremely low thermic inertia
• Optional built-in thermocouple for high-resolution temperature measuring (J-type standard; K-type on request)
• Unlimited range of possible shapes obtained from the straight heater
• Heaters can be incorporated into brass or aluminium castings
• 10 different cross sections are available to fulfil any requirement
• Wide range of straight standard heaters normally in stock, ready for coiling/shaping



	Cross Section
		1.5	1.8	3.3	3.7
		3.3 x 3.3
		1.1 x 1.9	1.3 x 2.3	1.8 x 3.2	2.2 x 4.2	4.5 x 8

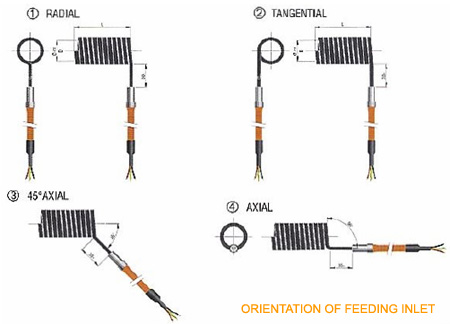

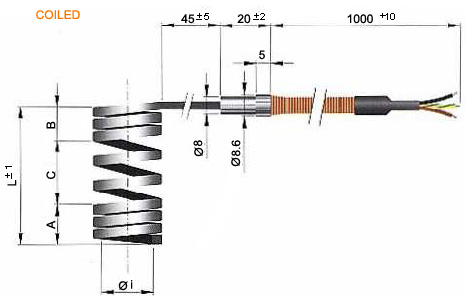

Feeding Cables and Protection Variants (standard length 1 m) »

			CGS » Standard solution for all models in stock: PTFE-insulated Nickel leads, protected by a strong, flexible, thick glass/silicone sheath.
			CGM » PTFE insulated Nickel leads, protected by a stainless steel flexible braid.
			CTF » PTFE insulated Nickel leads, protected by a stainless steel flexible hose with outer diameter 8 mm.
			CFL » Free PTFE insulated Nickel leads, non-protected.
			CMR » Free PTFE insulated Nickel leads, non-protected.

	3.3 x 3.3 + 0.15 1m cable, type CGS, with or w/o TC		Lenght L (mm) ± 3%		Heated Lenght (mm) ± 5%		Power (W) with 230V ± 10%		Power Density (W/cm) with 230 V
			250		205		175		6.5
			300		255		225		6.7
			350		305		250		6.2
			400		355		300		6.4
			450		405		350		6.5
			500		455		400		6.7
			600		555		450		6.1
			700		655		500		5.8
			800		755		600		6.0
			900		855		700		6.2
			1000		955		800		6.3
			1200		1155		900		5.9
			1400		1355		1000		5.6
			1600		1555		1100		5.4
			1800		1755		1250		5.4
			2000		1955		1400		5.4

	2.2 x 4.2 + 0.15 1m cable, type CGS, with or w/o TC		Lenght L (mm) ± 3%		Heated Lenght (mm) ± 5%		Power (W) with 230V ± 10%		Power Density (W/cm) with 230 V
			300		205		175		5.4
			350		255		210		5.4
			400		305		250		5.5
			450		355		280		5.4
			500		405		315		5.4
			550		455		350		5.4
			600		505		385		5.4
			700		555		450		5.4
			800		655		525		5.4
			900		855		600		5.5
			1000		955		600		5.4
			1200		1155		800		5.4

	1.8 x 3.2 ± 0.15 1m cable, type CGS, w/o TC		Lenght L (mm) ± 3%		Heated Lenght (mm) ± 5%		Power (W) with 230V ± 10%		Power Density (W/cm) with 230 V
			250		205		175		5.4
			300		255		210		5.4
			350		305		250		5.5
			400		355		280		5.4
			450		405		315		5.4
			500		455		350		5.4
			600		505		385		5.4
			700		555		450		5.4
