Ceramic Sealed Infrared Heaters

FTE: BENT Ceramic Sealed Infrared Heaters

• Size :- 245mm x 60mm
• Full Through Emitter
• Recommended irradiation interval of 8" (200mm).
• Wattages:150-200-250-300-350- 400-500-600-650-750-800-1000

FFE: FLAT Ceramic Sealed Infrared Heaters

• Size :- 245mm x 60mm
• Full Flat Emitter
• Recommended irradiation interval of 4" (100mm).
• Wattages:150-200-250-300-350- 400-500-600-650-750-800-1000

  HTE

HTE: BENT (Half Length) Ceramic Sealed Infrared Heaters

• Size :- 122mm x 60mm
• Half Trough Emitter

  HTE / HFE

• Recommended irradiation interval of 8" (200mm).
• Wattages:100-125-150-200-250- 300-325-400-500

HFE: FLAT (Half Length) Ceramic Sealed Infrared Heaters

• Size :-122mm x 60mm
• Half Flat Emitter
• Recommended irradiation interval of 4" (100mm).
• Wattages:100-125-150-200-250-300-325-400-500

  HFE

HSE: SQUARE Ceramic Sealed Infrared Heaters

• Size :- 245mm x 60mm
• Full Through Emitter
• Recommended irradiation interval of 8" (200mm).
• Wattages:150-200-250-300-350-400-500-600-650-750-800-1000

HSE

HSE

LTE

LTE

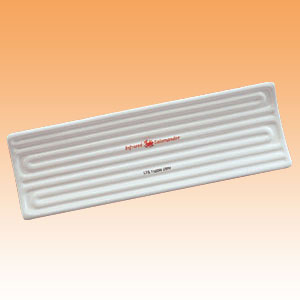

LTE: LARGE Ceramic Sealed Infrared Heaters

• Size :- 292mm x 92mm
• Wattages: Made to Order
• For special applications and also used in the CRP panel.

  ESE

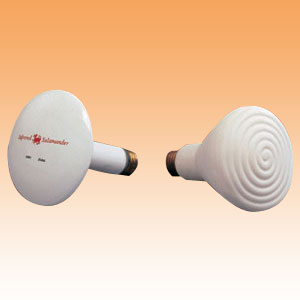

ESE: Edison Screw-Base (BULB TYPE) Sealed Infrared Heaters
Type ESE - Edison Screw-Base Emitter Replacing elements can be easy as changing a light bulb with this unique ceramic heater. The new solid ceramic stem design provides a breakthrough technology for applications using broad range infrared radiation. ESE must installed into an Edison base socket of sufficient watt rating, reflector, and guard.

Available accessories :
Spun aluminum reflector - Part # ESE/R
Porcelain holder - Part # ESE/H
Wire guard - Part # ESE/G
